AXE

FEATURES ●Accuracy 0.1% F.S.(Pt-100),0.2% F.S.

■ FEATURES ● Accuracy 0.1% F.S. ● Dielectric strength 1KVac/1min(input/output) ● Field-rangeable supper voltage from 10 to 28V ● Dimension mini-size(51.5x22.2x19.3mm) ● Low cost and high stability ● CE EMC certification

■ FEATURES ● Accuracy 0.1% F.S.(DC/Pt-100),0.2% F.S.

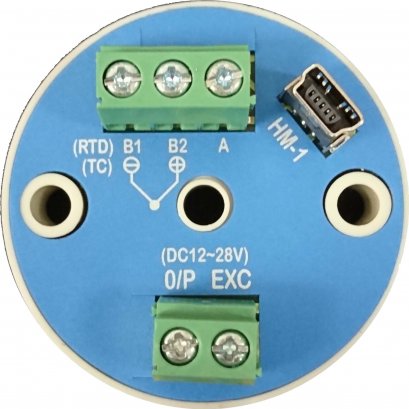

■ FEATURES ● Accuracy 0.1% F.S.(DC/Pt-100),0.2% F.S.�0.5℃(CJC)(TC) ● Input analog type (DCV/mV/mA/Pt-100/J/K/T/E/R/S/B) can be modified ● Burnout protection function, upscale the output current limit of approximately≦21mA ● Field-rangeable two-wire supper voltage from 12 to 28V ● Output DC4~20mA,RL(max.)=(Vsupper-12V)/20mA, up to 600 ohms at 24VDC ● Dielectric strength 1.5KVac/1min(input/output)

FEATURES ●Accuracy 0.05% F.S. ±1digit ●Measuring DCA/DCV/ACA/ACV/Potentiometer/Transmitter/Pt-100/Thermocouple/Load Cell/Resistor/etc... ●Programmable rate -19999~99999 digit ●Two channel input signal isolated output RS-485 for design ●Dielectric strength 1.5KVac/1min(input1/input2/output RS-485/power) ●Wide input range for auxiliary power ●Dimension small & High stability

FEATURES ● Accuracy 0.1% F.S. ±1digit ● Measuring DCA/DCV/ACA/ACV/Potentiometer/Transmitter/Pt-100/Load Cell/Resistor/etc... ● Two channel input signal isolated output for design ● Dielectric strength 1.5KVac/1min(input1/input2/output1/output2/power) ● Wide input range for auxiliary power ● Dimension small & High stability

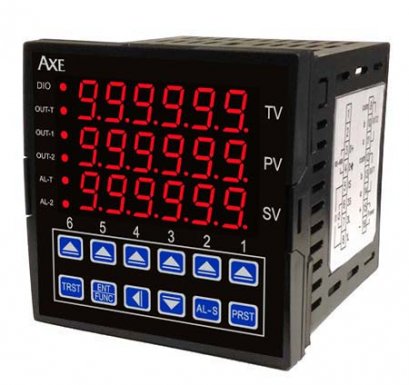

FEATURES ● NPN/PNP count input type can be modified ● Accepts input rates up to 50KHz ● Readout range form -199999 to 999999 digit ● Accept input rates 50 or 50000 CPS can modified ● Input scaling multiplied 0.00001 to 9.99999 can be modified ● Totalizer counting modes cnn be modified (synchronize and un-synchronize) ● Pre-warn alarm function (two alarm output) can be modified ● Three alarm function (optional) ● 16 bit DAC analog output function (optional) ● Digit RS-485 interface function (optional) ● Protection class NEMA4/IP67

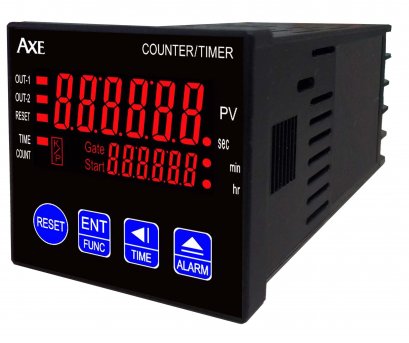

■ FEATURES ● Auto.change red or green or orange display when alarm status changes ● Pulse input type NPN/PNP can be modified ● Pulse input signal timer 1ms/20ms can be modified ● Timer counting direction Up/Down can be modified ● Twelve timer counting range form 999.999 second to 999999 hour can be modified-(Time) ● Timer eleven output mode A/A1/A2/A3/A5/B/B1/B2/C/D/E/F can be modified ● Two alarm function

MMX-D DC MULTI-POWER METER (Smart 485/Low Power)(48x96mm)

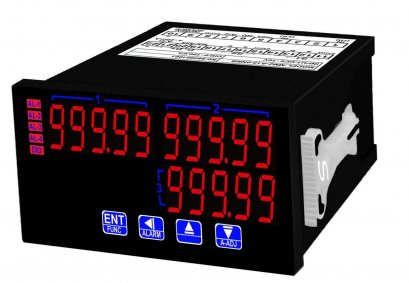

■FEATURES ●Accuracy 0.03% F.S. ●Dual input measuring and display Pulse(TTL,CMOS),Magnetic pick-up signal ●Dual input math function B-A,(B+A)/2,B/A,(B/A-1),1-(B/A),B/(A+B) ●Accepts input rates up to 25KHz ●Display type of RPM or line-speed can be modified ●Input pulse of revolution can be modified(1~99999 pulse/revolution ●Four independent alarm function (optional) ●16 bit DAC analog output function (optional) ●Digit RS-485 interface function (optional)
